Ovation 1615 Pacemaker 12-String Acoustic Electric Guitar Parts Diagram and Parts List
1980s
US

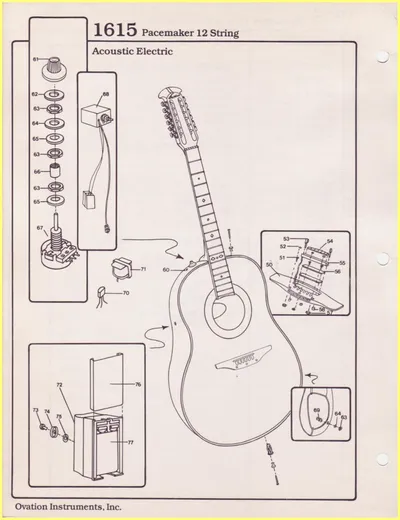

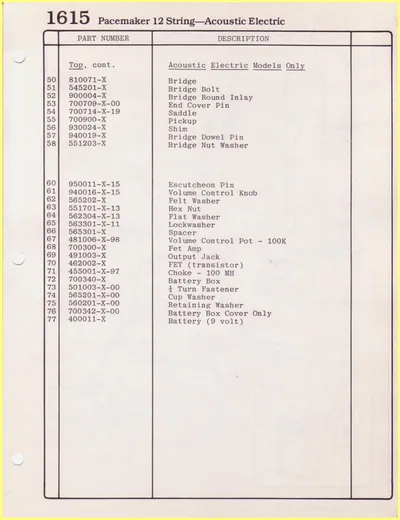

This is an official Ovation Instruments, Inc. parts diagram and parts list document for the model 1615 Pacemaker 12-String Acoustic Electric guitar. The document includes an exploded view illustration with numbered components and a corresponding parts list with part numbers and descriptions covering the bridge assembly and onboard electronics system. The onboard electronics feature a FET-based preamp system powered by a 9-volt battery, with a 100K volume control pot and output jack.
