Adamas Q Prototype Engineering Test Data - Neck & Fretboard Evaluations

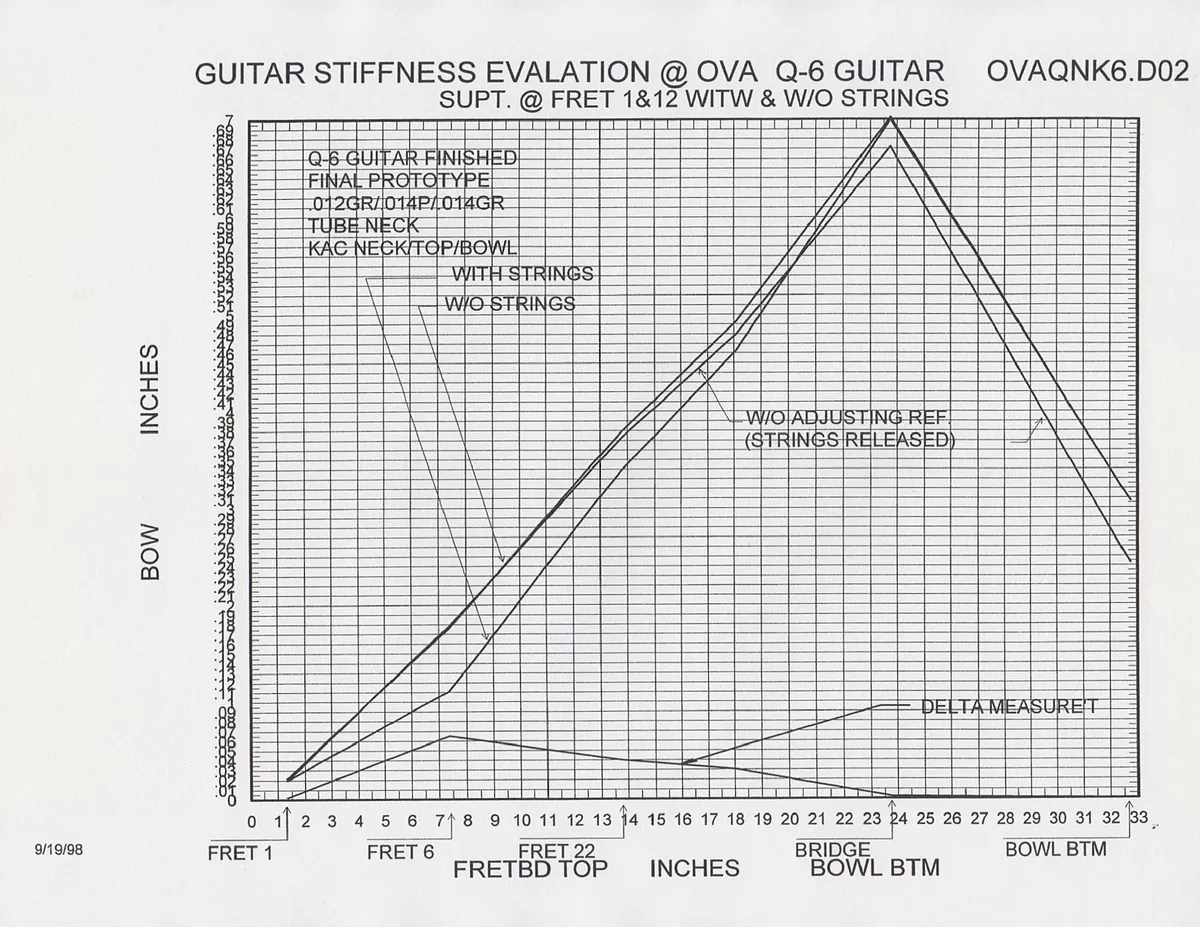

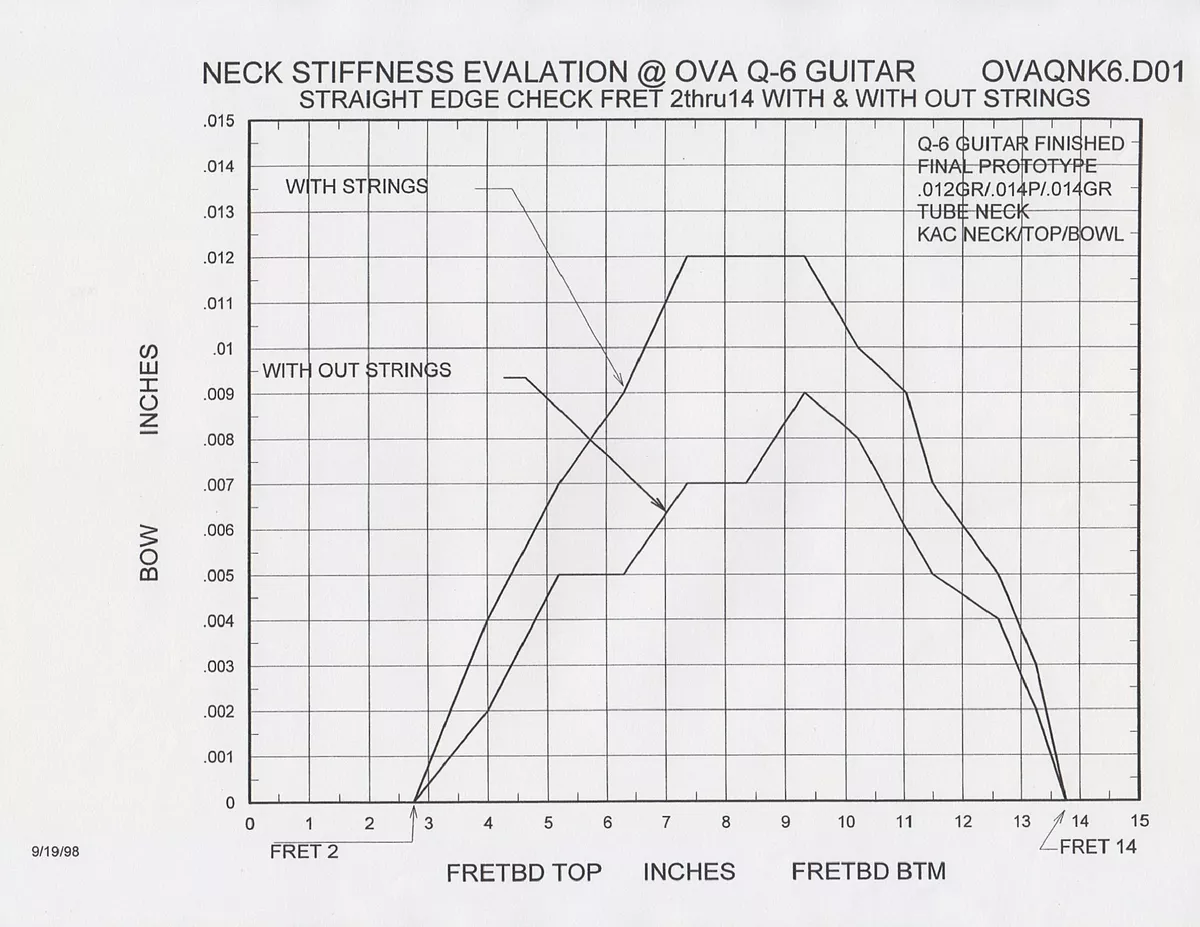

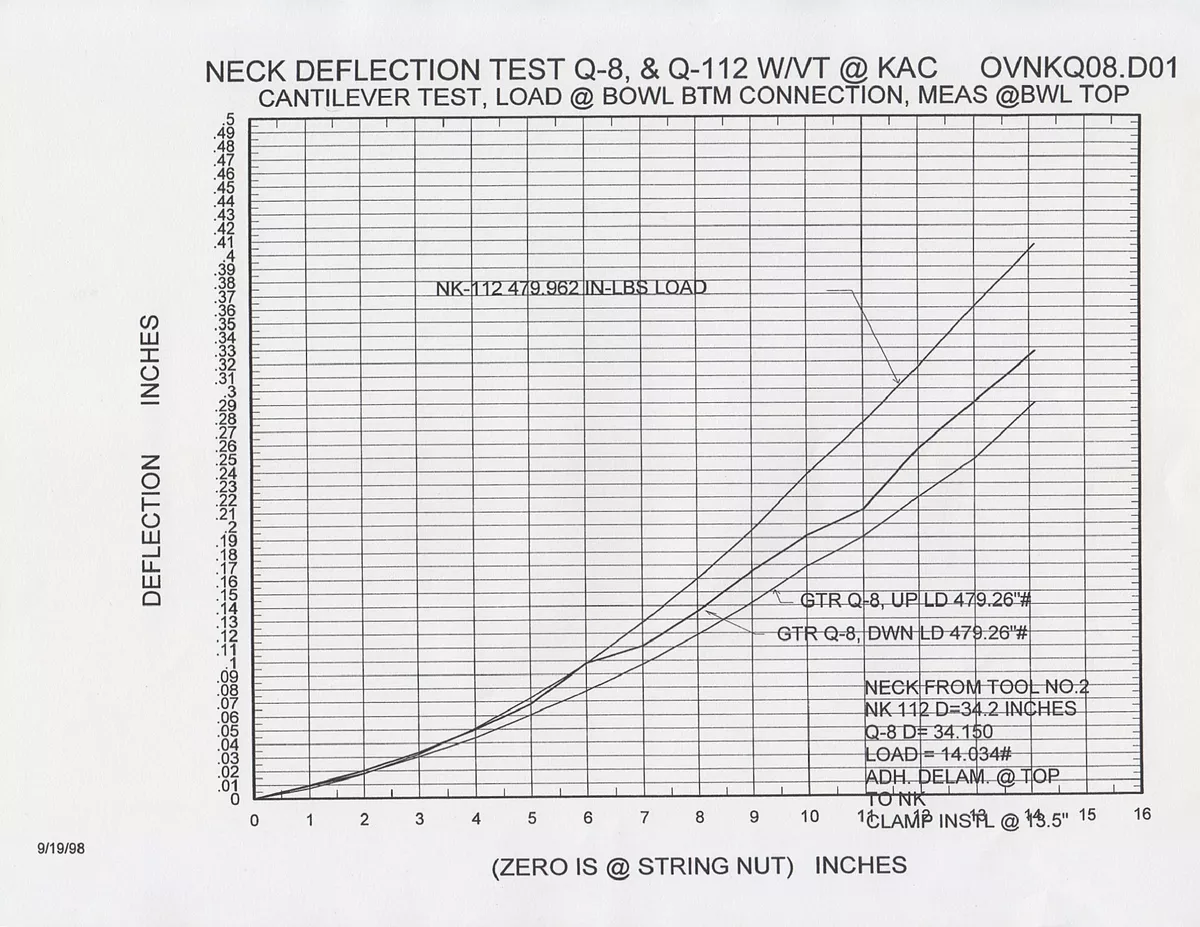

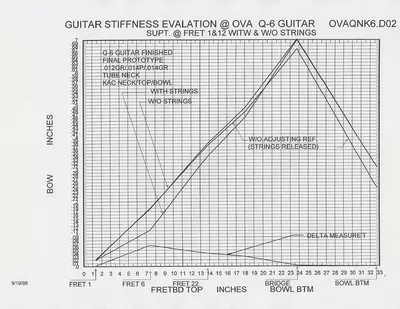

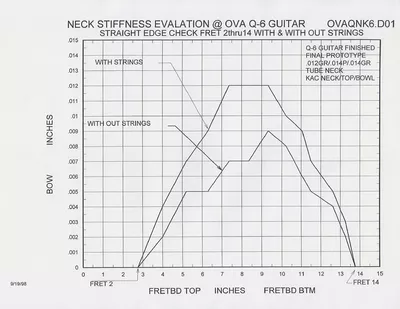

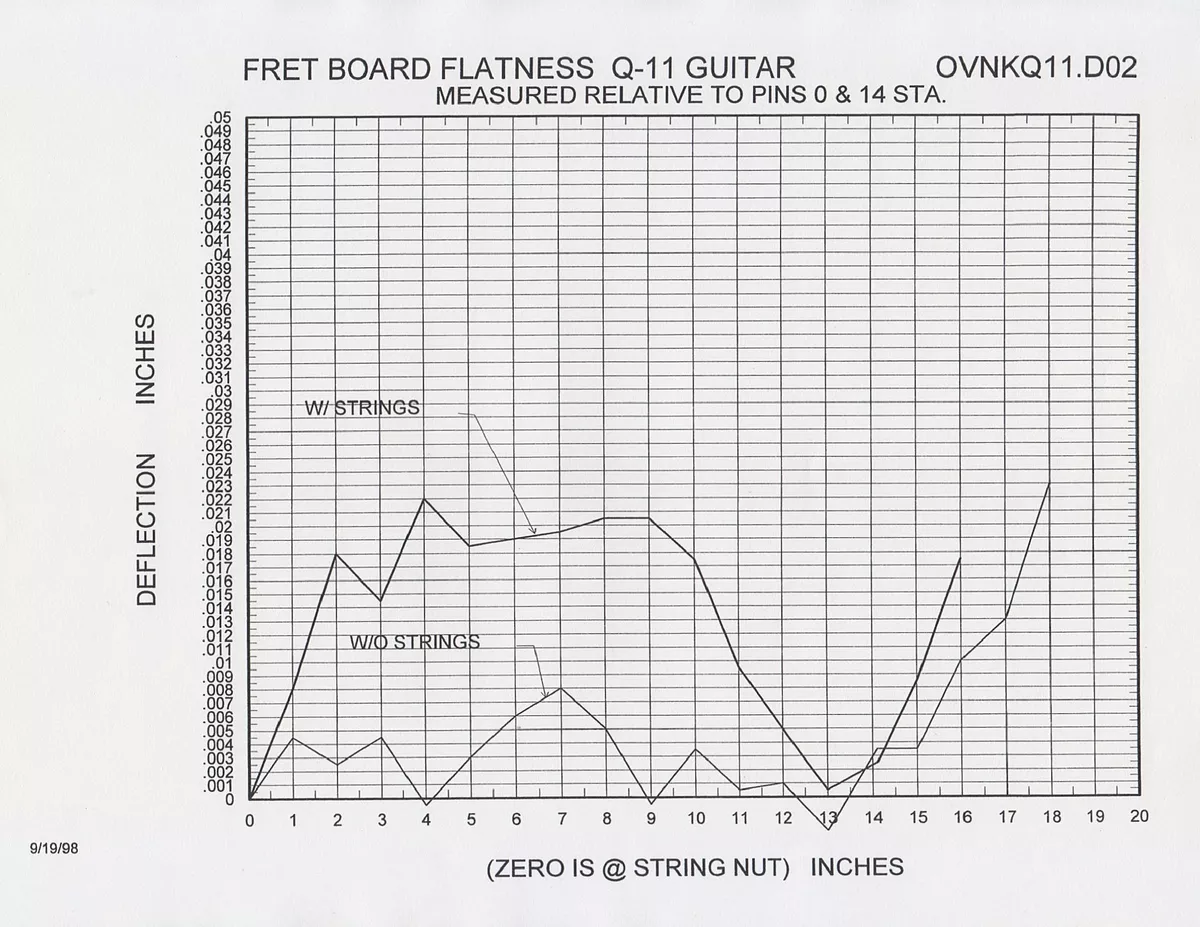

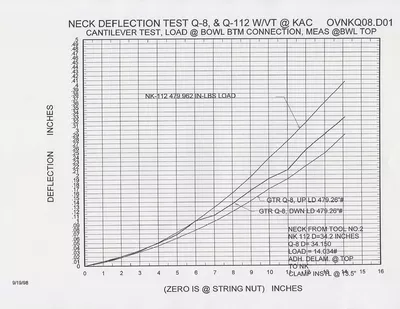

This document is a collection of internal Ovation guitar engineering test charts dated 9/19/98, measuring structural properties of prototype guitar necks and fretboards. The charts include fretboard flatness measurements for the Q-11 guitar, cantilever neck deflection tests for Q-8 and Q-112 models, and neck/guitar stiffness evaluations for the Q-6 guitar, all conducted with and without strings. These appear to be quality control or R&D engineering documents from Ovation's KAC facility, evaluating tube neck designs with specific graphite/pine layup configurations. Many thanlks to Dan from USA for these great docs !! 😉
