Ovation 1658 Custom Legend 12-String Acoustic Electric Guitar Parts Diagram and Parts List

1980s US

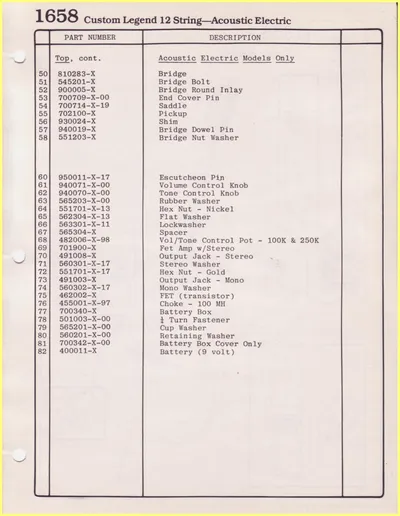

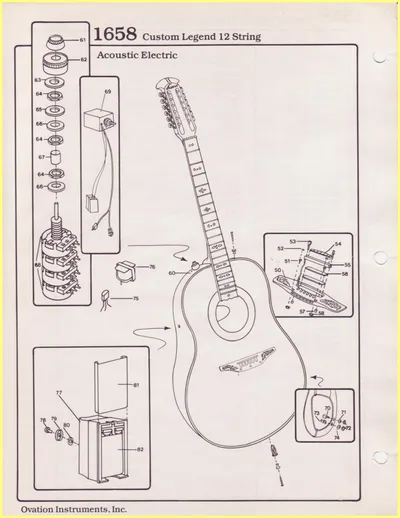

This two-page document from Ovation Instruments, Inc. provides an exploded parts diagram and corresponding parts list for the model 1658 Custom Legend 12-String Acoustic Electric guitar. The document covers all components specific to the acoustic-electric configuration, including the onboard FET amplifier, volume and tone controls, stereo/mono output jacks, bridge pickup, saddle assembly, and 9-volt battery box. Part numbers are listed with an '-X' suffix indicating finish or color variants.
