Ovation 1619 Custom Legend Acoustic-Electric Guitar Parts Diagram and Parts List

1980s US

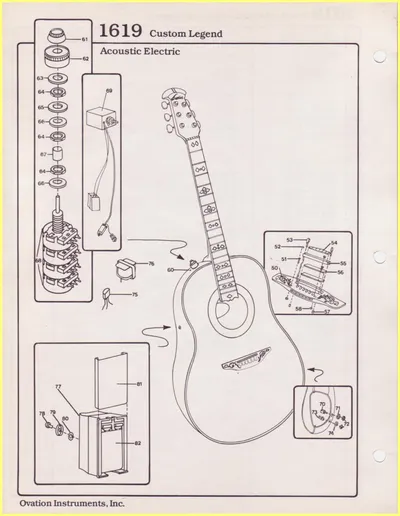

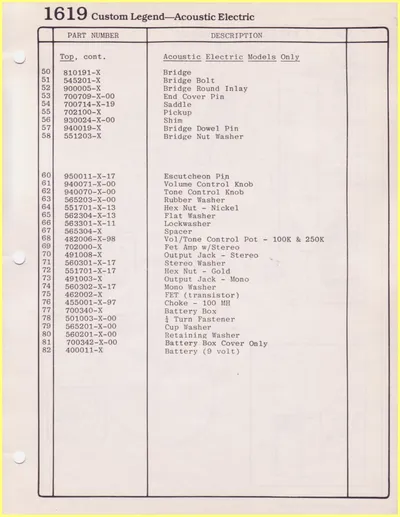

This two-page document from Ovation Instruments, Inc. provides an exploded parts diagram and complete parts list for the Ovation 1619 Custom Legend Acoustic-Electric guitar. The document details all components of the onboard electronics system including the FET amplifier with stereo output, volume and tone control pots, output jacks, battery box, and bridge/pickup assembly. Parts are numbered 50–82 and include Ovation-specific part numbers for ordering replacement components.
