Ovation UK II 1291 Circuit Diagram

passive pickup wiring with series/parallel switching UK II 1291 passive (no voltage) 1980s US 10 components

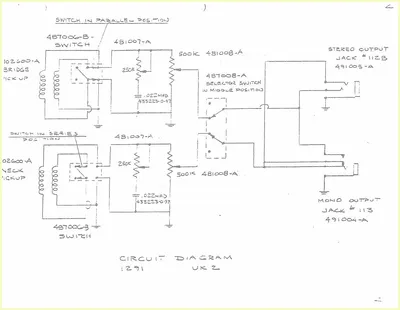

Passive wiring circuit diagram for the Ovation UK II model 1291 electric guitar. Features dual pickups (neck 02600-A and bridge 102600-A) with a 3-position selector switch supporting series and parallel pickup configurations. Each pickup has a dedicated 250K tone pot with .022 MFD capacitor and a 500K volume pot. Includes both mono (jack #113, part 49100-A) and stereo (jack #12B, part 49100-5A) output jacks. Detailed Ovation part numbers provided throughout.

Components

neck pickup (02600-A)
bridge pickup (102600-A)
3-position selector switch (series/parallel)
250K tone pot with .022 MFD cap (435225-097) x2
500K volume pot (481008-A) x2
tone capacitor .022 MFD (435225-097) x2
switch assembly (481003-B)
pickup switch (481007-A) x2
mono output jack #113 (49100-A)
stereo output jack #12B (49100-5A)

Guitar Model

1291 · UK II 1291
