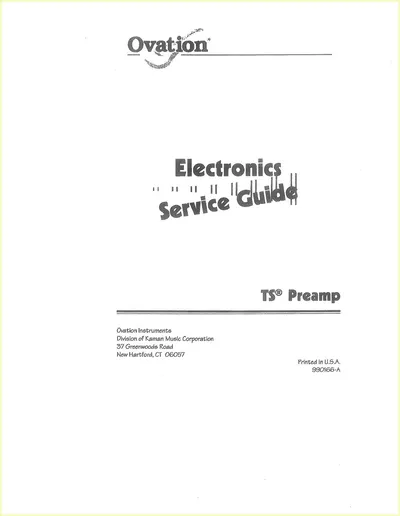

Ovation TS Preamp Electronics Service Guide

Capacitive proximity sensing preamp with voltage divider EQ circuit TS Preamp 9V (single battery) 1997 US 12 components 4 diagrams

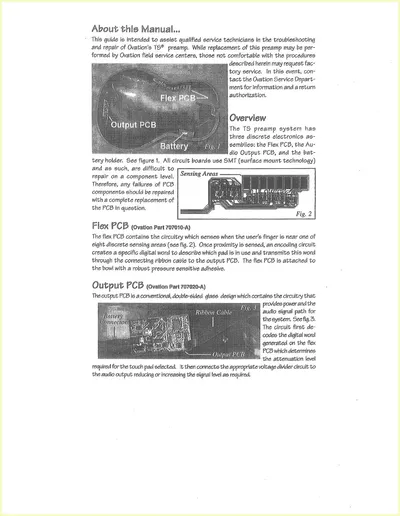

Service guide for the Ovation TS preamp system used in Ovation guitars. The TS preamp consists of three discrete electronics assemblies: a Flex PCB (Part 707010-A) with eight capacitive proximity sensing areas and encoding circuitry, an Output PCB (Part 707020-A) which is a double-sided glass SMT board providing power, audio signal path, voltage divider attenuation, and a preset EQ curve, plus a battery holder. All boards use surface mount technology. Published by Ovation Instruments, Division of Kaman Music Corporation. Document 990166-A.

Components

Flex PCB (707010-A)
Output PCB (707020-A)
Battery Holder
SMT Components
Ribbon Cable
Proximity Sensors (x8)
Encoding Circuit
Voltage Divider Circuit
Preset EQ Curve Circuit
Output Jack
Pressure Sensitive Adhesive
Double-Sided Foam Tape

Guitar Models

1997 · 1997 Collector's Edition 1997-7N · Collector's 1997-7N
