Diagram of

Ovation Tornado Wiring Schematic

passive pickup wiring Tornado passive (no voltage) 1970s US 10 components

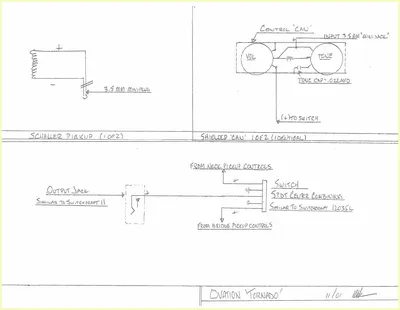

Passive wiring schematic for the Ovation Tornado electric guitar dated 11/01. Features two identical shielded pickups with individual volume and tone controls housed in a shielded control can, a 3PDT lever combining switch for pickup selection, .022 MFD tone capacitor, 3.5mm mini plug input, and output jack similar to Switchcraft II. Shows neck and bridge pickup signal routing through the combining switch.

Components

shielded pickup (x2, identical)
volume pot
tone pot
.022 MFD tone capacitor
3PDT lever combining switch (Switchcraft 1035L type)
3.5mm mini plug input
control can (shielded cavity)
output jack (Switchcraft II type)
neck pickup controls
bridge pickup controls

Guitar Model

Tornado
