Ovation Stereo VT Preamp Circuit Schematic
stereo preamp circuit schematic
Ovation Stereo VT Preamp (12-string with tone control)
9V (battery)
1984
US
19 components
2 diagrams

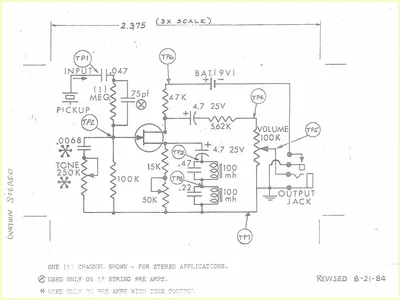

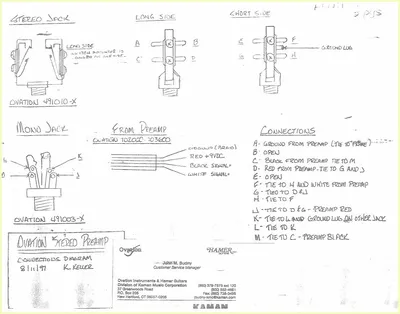

Single-channel preamp circuit schematic revised 8-21-84, drawn at 3x scale (2.375 inches). Shows complete signal path from pickup input through tone and volume controls to output jack. Designed for stereo applications with tone control, used only on 12-string pre amps. Includes 8 test points (TP1-TP8) for diagnostics. Second page contains stereo jack wiring diagram by K. Keller (8/11/97) for Ovation preamp models 102000/103600 with Ovation Instruments/Kaman Music/Hamer corporate information.
Components
Pickup input (1 Meg impedance)
Capacitor .047uF
Capacitor 75pF
Capacitor .0068uF
Capacitor .22uF
Capacitor .47uF
Electrolytic capacitor 4.7uF 25V (x2)
Transistor (NPN)
Resistor 100K (x2)
Resistor 50K
Resistor 15K
Resistor 47K
Resistor 562K
Potentiometer 250K (Tone)
Potentiometer 100K (Volume)
Inductor 100mH
9V Battery
Output jack
Test points TP1-TP8
