Ovation Magnum I Bass Guitar Wiring Schematic
passive bass guitar wiring
Ovation Magnum I
None (passive circuit)
1970s
US
11 components
2 diagrams

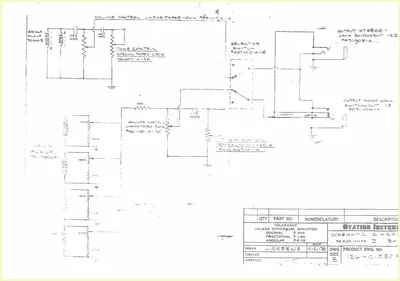

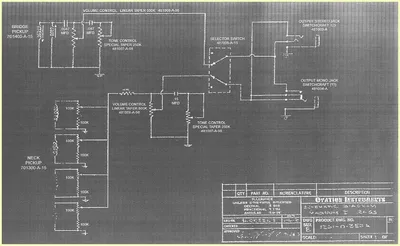

Factory wiring schematic for the Ovation Magnum I bass guitar showing a passive circuit with dual pickups (bridge 701400-A-15 and neck 701300-A-15), individual volume (500K linear taper) and tone (250K special taper) controls per pickup, a selector switch, stereo and mono output jacks (Switchcraft), and a resistor network of 100K resistors with capacitor filtering.
Components
Bridge Pickup 701400-A-15
Neck Pickup 701300-A-15
Volume Control Linear Taper 500K (481008-A-96) x2
Tone Control Special Taper 250K (481007-A-98) x2
Selector Switch (461005-A-15)
Output Stereo Jack Switchcraft 125 (461003-A)
Output Mono Jack Switchcraft (461004-A)
100K Resistors x8
0.047 MFD Capacitor
0.05 MFD Capacitor
.15 MFD Capacitor
