Ovation GTM6 Synth Interface Wiring Diagram
Guitar-to-synthesizer interface wiring diagram
Ovation GTM6 (FET 3 preamp)
+V (unspecified DC, supplied via tone circuit)
1990s
US
9 components

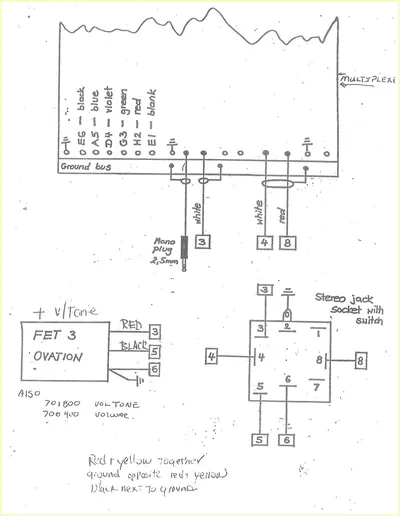

Hand-drawn wiring schematic for the Ovation GTM6 guitar synthesizer interface. Shows individual hex pickup string connections (E6-black, A5-blue, D4-violet, G3-green, H2-red, E1-blank) routed through a ground bus and multiplexer to a FET 3 preamp, then output via 2.5mm mono plug and stereo jack socket with switch. Includes wiring color notes and pin assignments for multi-pin connectors.
Components
FET 3 preamp module
Multiplexer
Ground bus
2.5mm mono plug
Stereo jack socket with switch
6-string hex pickup (E6/A5/D4/G3/H2/E1)
701 600 Vol-Tone control
700 400 Volume control
8-pin connector
