Ovation FET-3 / OP-24 Pre-Amp Parts List
FET preamp with op-amp
FET-3 / OP-24 Pre-Amp
9V DC (battery)
1980s
US
23 components

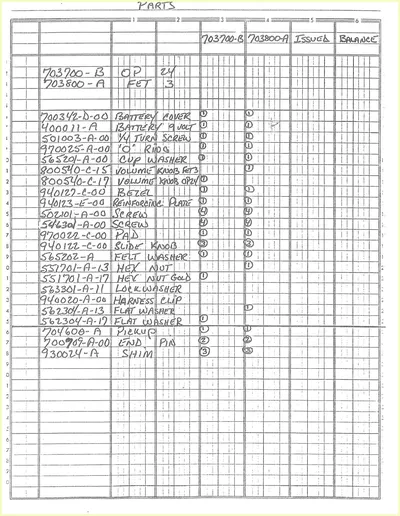

Factory parts list for Ovation guitar onboard preamp assemblies 703700-B (OP-24) and 703800-A (FET-3), listing mechanical and electronic components including pickup, volume knobs, battery compartment hardware, mounting hardware, and harness clip.
Components
700342-D-00 Battery Cover
400011-A Battery 9 Volt
501003-A-00 1/4 Turn Screw
970025-A-00 O-Ring
565201-A-00 Cup Washer
800540-C-15 Volume Knob FET3
800540-C-17 Volume Knob OP24
940127-C-00 Bezel
940123-E-00 Reinforcing Plate
502101-A-00 Screw
546301-A-00 Screw
970022-C-00 Pad
940122-C-00 Slide Knob
565202-A Felt Washer
551701-A-13 Hex Nut
551701-A-17 Hex Nut Gold
563301-A-11 Lock Washer
940020-A-00 Harness Clip
562304-A-13 Flat Washer
562304-A-17 Flat Washer
704600-A Pickup
700909-A-00 End Pin
930024-A Shim
