New Battery Box Assembly
battery-box-assembly
New Battery Box Assembly
9V
1980s
US
12 components

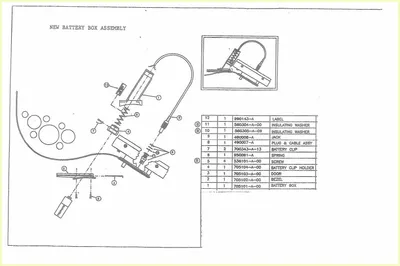

Exploded assembly diagram for the Ovation guitar battery box, showing all mechanical components including battery box housing, bezel, door, battery clip holder, spring, battery clips, plug and cable assembly, output jack, insulating washers, and label. This is a mechanical assembly diagram (not an electronic circuit schematic) for the onboard preamp battery compartment.
Components
Battery Box (7061101-A-00)
Bezel (7061102-A-00)
Door (7061103-A-00)
Battery Clip Holder (7061104-A-00)
Screw (5361101-A-00)
Spring (9530981-A)
Battery Clip (7000143-A-13) x2
Plug & Cable Assy (4900007-A)
Jack (4930098-A) x3
Insulating Washer (5600305-A-09)
Insulating Washer (5600394-A-00)
Label (9901043-A)
