FET3 / Ovation 4-Lug Jack Wiring - VT-FET3-OP24 Replacement Jack Instructions
output jack wiring diagram
OP24 / FET3
not specified
1980s
US
7 components

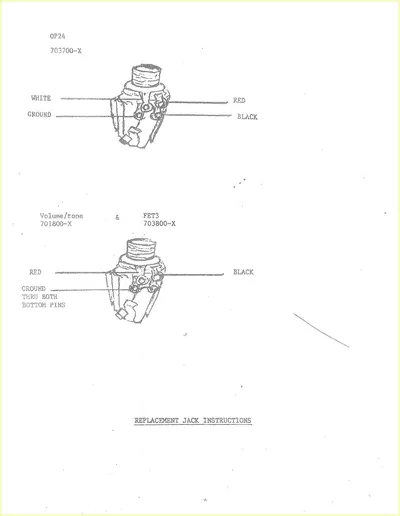

Wiring diagram for Ovation guitar replacement output jacks showing two configurations: (1) OP24 4-lug jack (703700-X) with WHITE, GROUND, RED, and BLACK connections, and (2) Volume/Tone (701800-X) with FET3 preamp (703800-X) using RED, GROUND thru both bottom pins, and BLACK connections.
Components
OP24 4-lug output jack (703700-X)
Volume/Tone control (701800-X)
FET3 preamp jack (703800-X)
WHITE wire (signal)
RED wire (hot)
BLACK wire (signal/return)
GROUND wire
