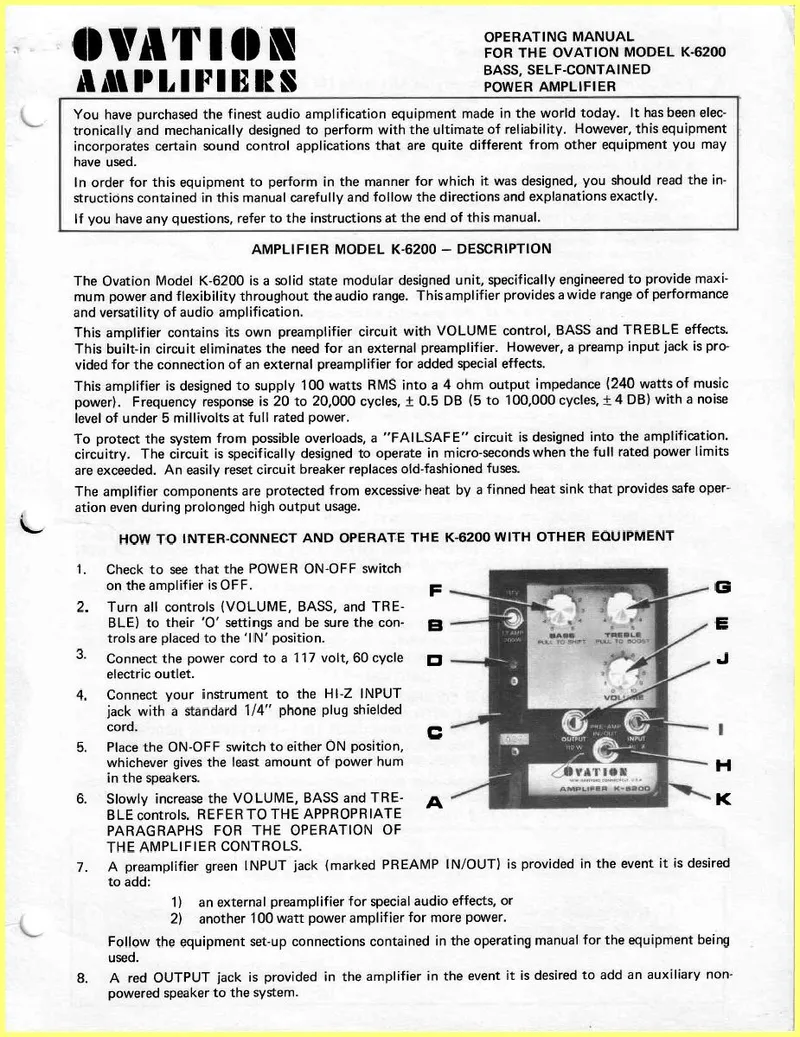

Ovation Model K-6200 Bass Self-Contained Power Amplifier Owner's Manual
Year: 1970
Operating manual for the Ovation Model K-6200 bass self-contained power amplifier. Solid-state modular unit with built-in preamplifier circuit providing volume, bass, and treble controls with bass shift and treble boost. Designed to supply 100 watts RMS into a 4-ohm output impedance (240 watts of music power). Frequency response 20 to 20,000 cycles. Features FAILSAFE circuit protection, finned heat sink, HI-Z input jack, green preamp IN/OUT jack for external preamplifier or additional power amplifier, and red OUTPUT jack for non-powered external speakers. Document number 0-6900-02.
