Ovation Instruments 1685 Adamas II 12-String Acoustic Electric - Parts Diagram and Parts List

1980s US

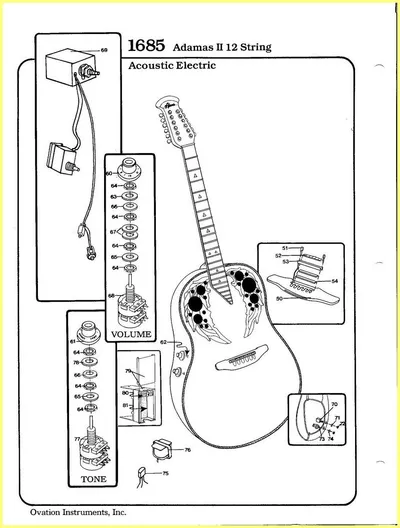

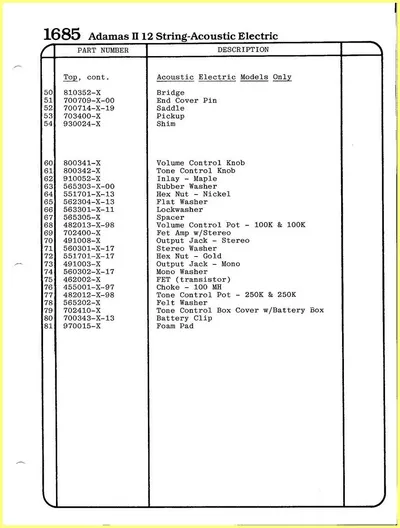

This two-page document from Ovation Instruments, Inc. provides an exploded parts diagram and complete parts list for the model 1685 Adamas II 12-String Acoustic Electric guitar. The document covers all electronic components including the FET preamp/amplifier system, stereo and mono output jacks, volume and tone control pots, pickup, and associated hardware. It is intended as a service and parts reference guide for technicians and repair personnel.
