Ovation Instruments Magnum 2 Bass Guitar (Model 1262) Parts & Assembly Manual
1980s
US

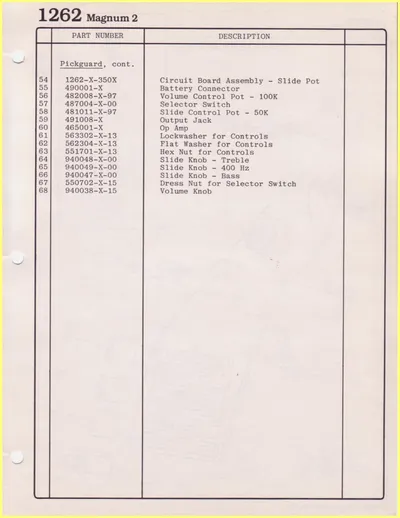

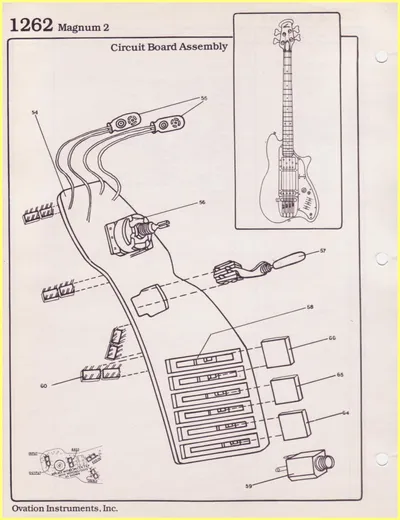

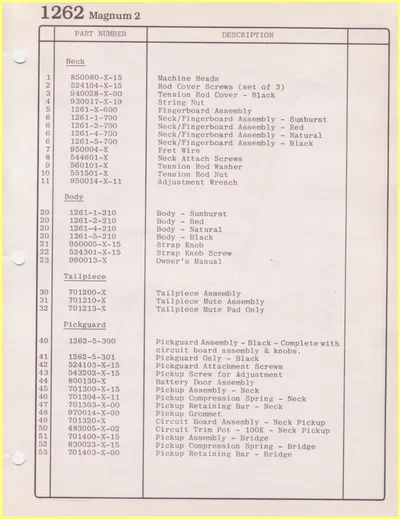

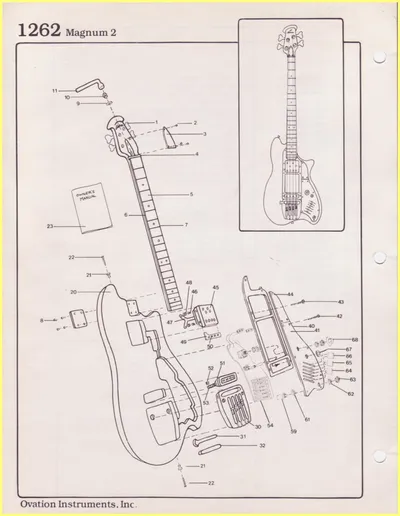

This is an official Ovation Instruments parts and assembly document for the Magnum 2 electric bass guitar, model number 1262. The document includes exploded-view diagrams of the full guitar and its circuit board assembly, along with comprehensive parts lists covering the neck, body, tailpiece, and pickguard sections. The active electronics system features an op amp, slide pot equalizer (treble, 400Hz, bass), dual pickups, and a battery-powered circuit board assembly.
